Mahant Industries

Radial Tyre Repair

RADIAL TYRE REPAIR

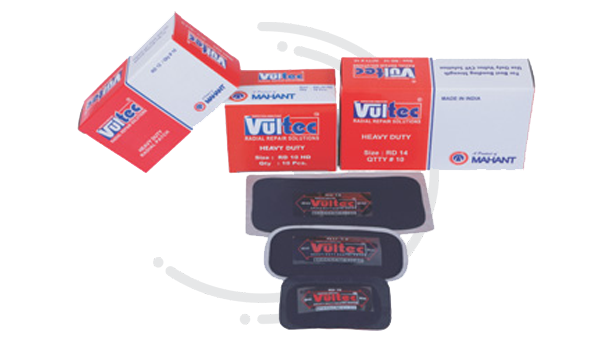

Radial Tyre Patches - Passenger Car Tyres

VULTEC Radial tyre patches are used to repair a puncture, reinforced and section injuries in passenger, light truck, truck and heavy-duty truck and farm radials/tubeless tyres. The patches are to be centred over the injury because of special code reinforcement and ply construction. Each patch unit features a special compounding and design, directionally polyester fibres, toughened platform providing added strength (wedge construction), heat reduction while preserving flexibility. Die-cut feather edges distribute the cord and stress across the radialised area preventing the lifting of cord edges.
With VULTEC repairs, there is no need to apply the repair from the non-flex area to non- flex area. This special construction reduces the effect of flexing and also reduces inventory requirement since they can be used for CROWN, SHOULDER and SIDEWALL repairs.

Radial Tyre Patches - Passenger Car Tyres

Product Code Versa Cure Versa Cure Radial Tyre Patches Product Code Chemical Cure Chemical Cure Radial Tyre Patches Dimensions of Patches in mm Ply Rating Qty per Box
VTR012 RD 10 CTR212 RD 110 55 X 80 1 20
VTR013 RD 10HD CTR213 RD 110HD 65 X 80 1 10
VTR014 RD 10HD + CTR214 RD 110HD + 75 X 90 1 10
VTR015 RD 12 CTR215 RD 112 60 X 110 1 10
VTR016 RD 12HD CTR216 RD 112HD 70 X 115 1 10
VTR017 RD 14 CTR217 RD 114 78 X 140 1 10
VTR018 RD 14HD CTR218 RD 114HD 85 X 130 1 10
VTR019 RD 14HD + CTR219 RD 114HD + 84 X 163 1 10
VTR020 RD 15HD* CTR220 RD 115HD 75 X 90 1 10

RADIAL TYRES - REPAIR CHART

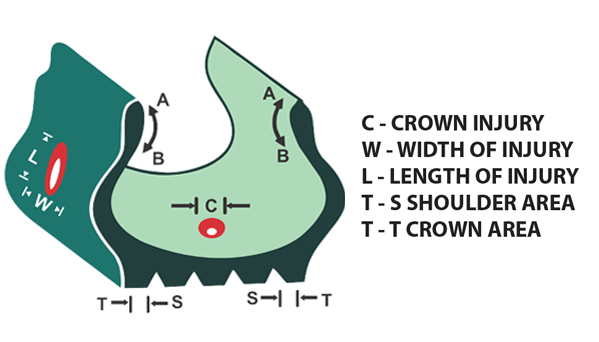

A-B NON REPAIRABLE AREA

Tyre Size From the Beed
Passenger 1 1/2" (40mm)
6.50 - 7.00 2 1/2" (65mm)
7.50 - 16.00 3" (75mm)

Passenger Car Tyre Repair Chart

CROWN INJURY Inches (mm) SIDEWALL INJURY PASSENGER CAR TYRE SIZES
WIDTH Inches (mm) LENGTH Inches (mm) 125 - 175 185 - 255
1/4" (6mm) 1/4" (6mm) 1/2" (13mm) RD 10 RD 10
1/4" (6mm) 1 1/2" (40mm) RD 12 RD 12
1/4" (6mm) 2" (50mm) RD 14 RD 14
3/8" (10mm) 3/8" (10mm) 3/8" (10mm) RD 10 RD 10
3/8" (10mm) 1 1/2" (40mm) RD 12 RD 12
3/8" (10mm) 2" (50mm) RD 14 RD 14
1/2" (13mm) 1/2" (13mm) 1 1/2" (40mm) RD 12 RD 12
1/2" (13mm) 2" (50mm) RD 14 RD 14
3/4" (20mm) 3/4" (20mm) 1 1/2" (40mm) RD 12 RD 12
3/4" (20mm) 2" (50mm) RD 14 RD 14
1" (25mm) 1" (25mm) 1 1/2" (40mm) RD 14 RD 14
1" (25mm) 2" (50mm) RD 14 RD 22

Note

  • The above-mentioned data is for reference only.
  • Consult tyre manufacturer for repair limitations.
  • The patch number mentioned above on the table is applied for Versa cure and Chemical cure patches

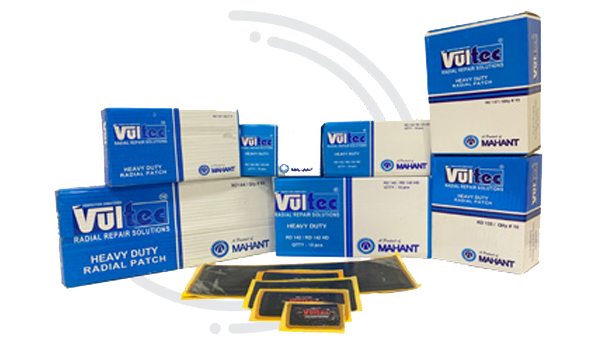

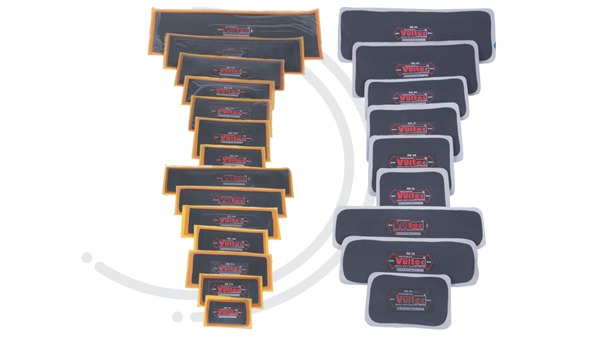

Radial Tyre Patches - LCV & Truck Tyres

LCV & Truck Tyre Patches

Product Code Versa Cure Versa Cure Radial Tyre Patches Product Code Chemical Cure Chemical Cure Radial Tyre Patches Dimensions of Patches in mm Ply Rating Qty per Box
VTR021 RD 20 CTR221 RD 120 75 X 125 2 10
VTR022 RD 20HD CTR222 RD 120HD 85 X 130 2 10
VTR023 RD 20HD + CTR223 RD 120HD + 90 X 148 2 10
VTR024 RD 22 CTR224 RD 122 75 X 165 2 10
VTR025 RD 22HD CTR225 RD 122HD 85 X 180 2 10
VTR026 RD 22HD + CTR226 RD 122HD + 95 X 180 2 10
VTR027 RD 24 CTR227 RD 124 75 X 215 2 10
VTR028 RD 24HD CTR228 RD 124HD 90 X 220 3 10
VTR029 RD 26 CTR229 RD 126 75 X 250 3 10
VTR030 RD 26HD CTR230 RD 126HD 90 X 250 4 10
VTR031 RD 33* CTR231 RD 133* 100 X 125 4 10
VTR032 RD 33+* CTR232 RD 133+* 114 X 128 4 10
VTR033 RD 35* CTR233 RD 135* 125 X 150 4 10
VTR034 RD 35+* CTR234 RD 135+* 135 X 162 4 10
VTR035 RD 37* CTR235 RD 137* 125 X 175 4 10
VTR036 RD 37+* CTR236 RD 137+* 140 X 180 4 10
VTR037 RD 40 CTR237 RD 140 100 X 200 3 10
VTR038 RD 40HD CTR238 RD 140HD 110 X 210 4 10
VTR039 RD 40HD + CTR239 RD 140HD + 120 X 215 4 10
VTR040 RD 42 CTR240 RD 142 125 X 250 4 10
VTR041 RD 42HD CTR241 RD 142HD 135 X 260 4 10
VTR042 RD 42HD + CTR242 RD1 42HD + 140 X 270 4 10
VTR043 RD 44 CTR243 RD 144 125 X 325 4 5
VTR044 RD 44+ CTR244 RD 144+ 140 X 335 4 5

REPAIR CHARTS FOR LCV & TRUCK TYRES

A-B NON REPAIRABLE AREA

Tyre Size From the Beed
Passenger 1 1/2" (40mm)
6.50 - 7.00 2 1/2" (65mm)
7.50 - 16.00 3 (75mm)

Truck, LCV Radial Tyre Repair Chart

CROWN INJURY Inches (mm) SIDEWALL INJURY UTILIZE RADIAL REPAIRPATCHES - RD TRUCK TYRE SIZE
WIDTH Inches (mm) LENGTH Inches (mm) 6.00 - 7.50 8.25 - 10.00 11.00 - 14.00
7R - 8.5R 9R - 11R 12R - 16.5R
215/- 235/- 235/- 285/- 295/- 425/-
3 (mm) 1 1/8" (3mm) 1/8" (3mm) RD 10 RD 10 RD 10
1/4 (6mm) 3/8" (10mm) 3/8" (10mm) RD 12 RD 12 RD 12
1 Cable 1 1/2" (40mm) RD 20 RD 20 RD 20
1 Cable 3" (75mm) RD 22 RD 22 RD 22
1 Cable 5" (125mm) RD 24 RD 24
1 Cable 6" (150mm) RD 26 RD 26
1/2" (13mm) RD 22 RD 33 RD 33
2 Cable 3/4" (20mm) RD 20 RD 20 RD 22
2 Cable 1 1/2" (40mm) RD 20 RD 22 RD 24
2 Cable 2 1/2" (65mm) RD 22 RD 24 RD 26
2 Cable 5 1/8" (130mm) RD 26 RD 26
3/8" (10mm) 1 1/2" (40mm) RD 20 RD 26 RD 40
3/8" (10mm) 2 1/8" (60mm) RD 22 RD 26 RD 40
3/8" (10mm) 3 1/8" (80mm) RD 26 RD 26 RD 42
3/8" (10mm) 5" (125mm) RD 26 RD 42
3/4" (20mm) RD 24 RD 33 RD 35
1/2" (13mm) 1 1/2" (40mm) RD 22 RD 40 RD 40
1/2" (13mm) 2 1/2" (65mm) RD 22 RD 40 RD 42
1/2" (13mm) 4" (100mm) RD 42 RD 44
1/2" (13mm) 5" (125mm) RD 42 RD 44
3/4" (20mm) 1" (25mm) RD 22 RD 40 RD 42
3/4" (20mm) 2 1/2" (65mm) RD 42 RD 44
3/4" (20mm) 4 1/8" (110mm) RD 42 RD 44
3/4" (20mm) 5 1/8" (130mm) RD 44 RD 44
1" (125mm) RD 33 RD 35 RD 35
1" (125mm) 2" (50mm) RD 40 RD 42 RD 44
1" (125mm) 3" (75mm) RD 42 RD 44
1" (125mm) 4" (100mm) RD 44 RD 44
1 1/4" (32mm) RD 37 RD 37
1 1/4" (32mm) 2" (50mm) RD 42 RD 44
1 1/4" (32mm) 3 1/8" (80mm) RD 44 RD 44
1 1/4" (32mm) 4" (100mm) RD 44 RD 44
1 1/2" (40mm) RD 37 RD 37
1 1/2" (40mm) 2" (50mm) RD 44 RD 44
1 1/2" (40mm) 3 1/8" (80mm) RD 44 RD 44
1 1/2" (40mm) 4" (100mm) RD 46

Note

  • Radial Repair patches RD 33,35,37,45,47,65 are specially meant for crown injury Repairs.
  • The above-mentioned data is for reference only.
  • Consult tyre manufacturer for repair limitations.
  • The patch number mentioned above on the table is applied for Versa cure and Chemical cure patches

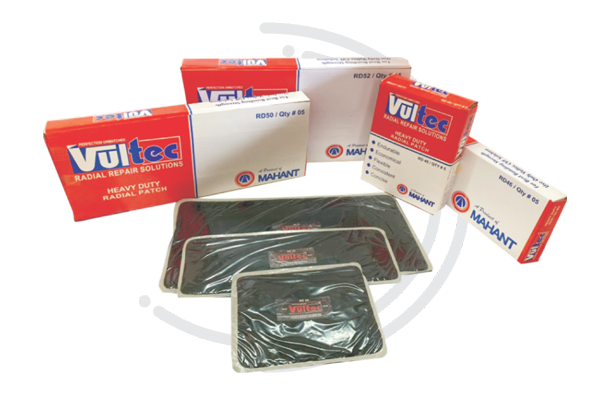

OTR Radial Tyre Repairs

VULTEC OTR tyre repairs patches are used to repair a puncture, reinforced and section injuries in radial-ply Off the Road Tyre of Heavy-duty machines (Construction, Earthmoving). Their radial units feature an elongated step down between plies, together with extra top cover stock thus allowing the repair unit to be placed over the injury and affixed in any flex area of the tyre. With VULTEC repairs, there's no need to apply the repair from the non-flex area to non-flex area. This distinct construction reduces the effect of flexing and reduces inventory requirements since they can be used for CROWN, SHOULDER and SIDEWALL repairs

Earthmover/OTR Tyre

Product Code Versa Cure Versa Cure Radial Tyre Patches Product Code Chemical Cure Chemical Cure Radial Tyre Patches Dimensions of Patches in mm Ply Rating Qty per Box
VTR045 RD 45* CTR245 RD 145 185 X 235 4 5
VTR046 RD 46 CTR246 RD 146 140 X 400 4 5
VTR098 RD 47 CTR298 RD 147 260 X 305 4 5
VTR047 RD 50 CTR247 RD 150 190 X 500 4 5
VTR048 RD 52 CTR248 RD 152 250 X 450 4 5
VTR049 RD 56* CTR249 RD 156 253 X 635 6 5
VTR050 RD 60 CTR250 RD 160 265 X 860 6 3
VTR051 RD 65* CTR251 RD 165 330 X 420 6 3
VTR052 RD 70 CTR252 RD 170 315 X 560 5 3
VTR053 RD 72* CTR253 RD 172 315 X 710 6 3

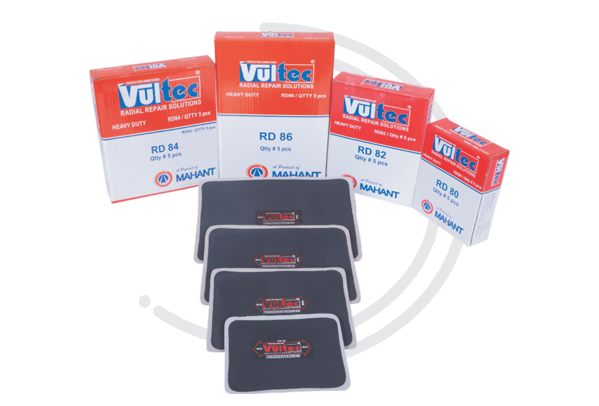

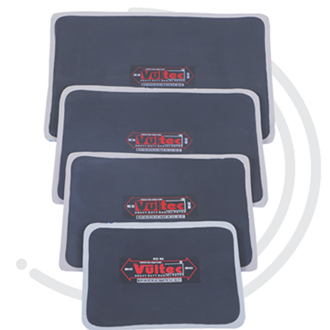

Tractor Tyre

Product Code Versa Cure Versa Cure Radial Tyre Patches Product Code Chemical Cure Chemical Cure Radial Tyre Patches Dimensions of Patches in mm Ply Rating Qty per Box
VTR054 RD 80 CTR254 RD 180 150 X 195 6 5
VTR055 RD 82 CTR255 RD 182 190 X 250 6 5
VTR056 RD 84 CTR256 RD 184 215 X 290 6 5
VTR057 RD 86 CTR257 RD 186 245 X 340 8 5

(Recommended to use only VULTEC Chemical Vulcanizing Fluid for Perfect Bonding)

REPAIR CHARTS FOR OTR RADIAL TYRE

A-B NON REPAIRABLE AREA

Tyre Size From the Beed
14.00 - 16.00 (15.5 - 17.5) 3" 75mm
18.00 - 14.00 (20.5 - 29.5) 5" 125mm
27.00 - 33.00 (33.25 - 37.5) 6" 150mm
40/65 - 50/65 (40.5) 6 3/4" 170mm
36 8" 200mm
37.00 - 40.00 (50.5 & larger) 10" 255mm

Tractor Tyre - Repair Chart

CROWN INJURY Inches (mm) SIDEWALL INJURY PASSENGER CAR TYRE SIZES
WIDTH Inches (mm) LENGTH Inches (mm) 125 - 175 185 - 255
8.3 - 12.4 13.6 - 30.5
3/8" (10mm) 3/8" (10mm) 3/8" (10mm) RD 12 RD 12
3/4" (10mm) 3/8" (10mm) 1 1/2" (40mm) RD 20 RD 20
3/4" (20mm) 2" (50mm) RD 22 RD 80
1 1/2" (40mm) 1 1/2" (40mm) 3" (75mm) RD 80 RD 82
2" (50mm) 2" (50mm) RD 80 RD 82
2 1/2" (65mm) 2 1/2" (65mm) 4" (100mm) RD 82 RD 82
3 1-2" (90mm) 3" (75mm) 3" (75mm) RD 82 RD 82
3" (75mm) 5" (125mm) RD 82 RD 82
3" (75mm) 4" (100mm) RD 84
5" (125mm) 4" (100mm) 6" (150mm) RD 86
5" (125mm) 5" (125mm) RD 86

OTR (Off the Road) Radial Repair Chart

CROWN INJURY Inches (mm) SIDEWALL INJURY SHOULDER INJURY Inches (mm) EARTHMOVER TYRE SIZE
WIDTH Inches (mm) LENGTH Inches (mm) 14.00 - 16.00 18.00 - 30.00 33.00 - 40.00
15.5 - 17.5 20.5 - 37.5 37.5 - 50.5
20/65 - 25/65 35/65 - 45/65 50/65 - 65/65
3/4" (20mm) RD 45 RD 45 RD 45
1" (25mm) RD 45 RD 45 RD 45
1 1/2" (40mm) RD 45 RD 56 RD 56
2" (50mm) RD 56 RD 56 RD 65
2 1/2" (65mm) RD 56 RD 65 RD 65
3 1/2" (90mm) RD 72 RD 72
5" (125mm) RD 72 RD 72
3/4" (20mm) RD 46 RD 50 RD 52
1" (25mm) RD 46 RD 52 RD 52
1 1/2" (40mm) RD 50 RD 52 RD 56
2" (50mm) RD 50 RD 56 RD 56
2 1/2" (65mm) RD 56 RD 72 RD 72
3" (75mm) RD 72 RD 72
3/4" (20mm) 3" (75mm) RD 44 RD 44 RD 50
3/4" (20mm) 6" (150mm) RD 46 RD 46 RD 50
3/4" (20mm) 8" (200mm) RD 46 RD 50 RD 50
1" (25mm) 6" (150mm) RD 46 RD 46 RD 50
1" (25mm) 10" (250mm) RD 50 RD 52 RD 56
2" (50mm) 6" (150mm) RD 50 RD 50 RD 52
2" (50mm) 10" (250mm) RD 52 RD 52 RD 56
2" (50mm) 12" (300mm) RD 56 RD 60
2" (50mm) 16"(400mm) RD 60 RD 60
3" (75mm) 8" (200mm) RD 52 RD 56 RD 56
3" (75mm) 10" (250mm) RD 56 RD 72
3" (75mm) 12" (300mm) RD 56 RD 60
4" (100mm) 6" (150mm) RD 52 RD 56 RD 56
4" (100mm) 8" (200mm) RD 72 RD 72
4" (100mm) 10" (250mm) RD 60 RD 60

Note

  • Radial Repair patches RD ,45,47,65 are specially meant for crown injury repairs.
  • The above-mentioned data is for reference only.
  • Consult tyre manufacturer for repair limitations.
  • The patch number mentioned above on the table is applied for Versa cure and Chemical cure patches
