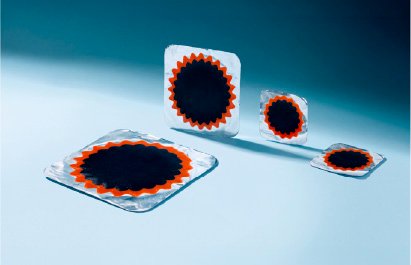

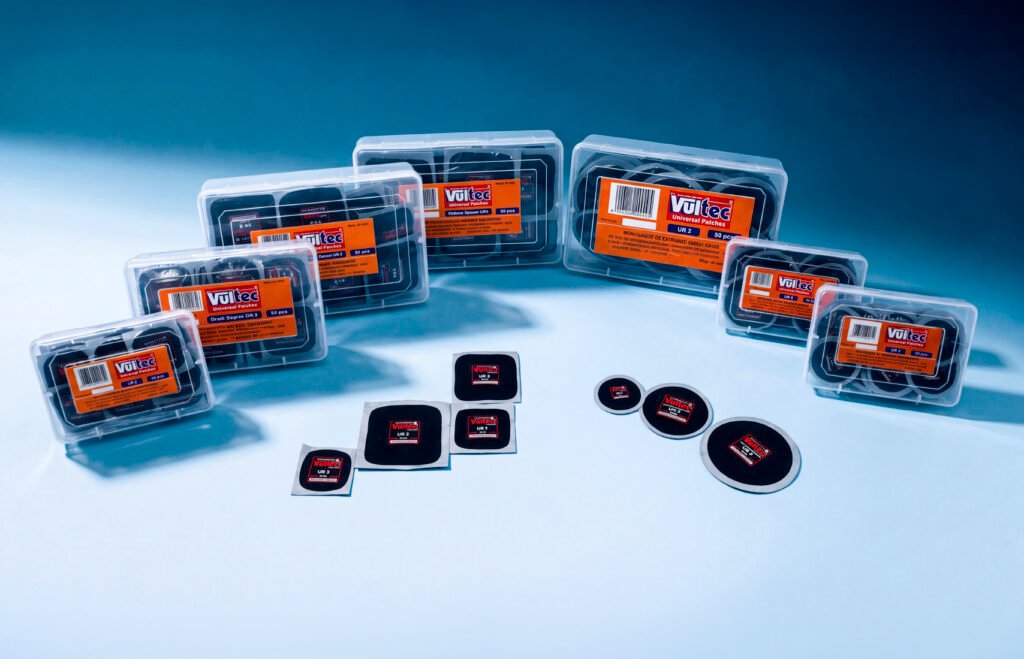

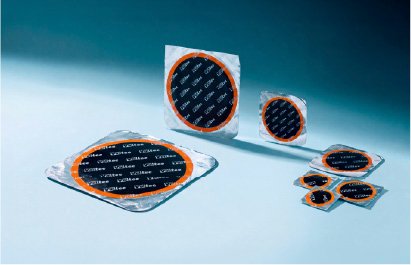

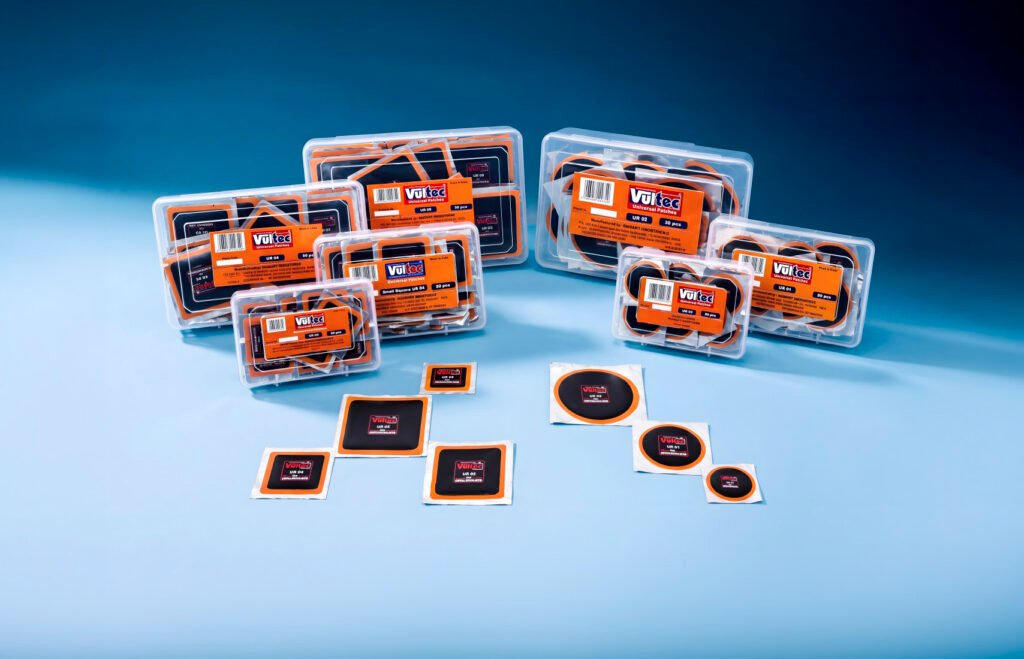

Universal Patches are made from high-gauge rubber compound with a high-tack cushion layer. These patches are built to repair pinhole punctures up to 3/8″ in bias, radial, tubeless, and tube-type tyres. Suitable for passenger, light truck, and truck applications. They are in available in three designs: Round, Square and Star.
| Universal Design (Round Patches) | |||
|---|---|---|---|
| Product Code Chemical Cure | Product Description | Dimensions of Patches in mm | Total Pieces per Box |
| CTR275 | Universal Small Round (UR 0) | 43 | 50 |
| CTR276 | Universal Medium Round (UR 1) | 60 | 50 |
| CTR277 | Universal Large Round (UR 2) | 80 | 50 |
| Universal Design (Square Patches) | |||
|---|---|---|---|
| Product Code Chemical Cure | Product Description | Dimensions of Patches in mm | Total Pieces per Box |
| CTR278 | Universal Mini Square (UR 3) | 45 x 45 | 50 |
| CTR279 | Universal Small Square (UR 4) | 55 x 55 | 50 |
| CTR280 | Universal Medium Square (UR 5) | 65 x 65 | 50 |
| CTR281 | Universal Large Square (UR 6) | 75 x 75 | 50 |
| Vultop Star Type Universal Patches | ||||||
|---|---|---|---|---|---|---|
| Product Code Chemical Cure | Description | Dimensions of Patches | Thickness of Patches | Total Pieces per Box | ||
| TTR45 | Item No. 2 | 45 mm | 2.20 mm | 30 | ||
| TTR55 | Item No. 3 | 55 mm | 2.20 mm | 30 | ||
| TTR75 | Item No. 4 | 75 mm | 2.60 mm | 30 | ||
| TTR94 | Item No. 5 | 94 mm | 3.00 mm | 10 | ||
| PAX Type Universal Patches | ||||||
|---|---|---|---|---|---|---|
| Product Code Versa Cure | Product Code | Dimensions of Patches | No. of Pieces per Strip | Thickness of Patches | No. of Strips per Box | Total Pcs per Box |
| VXR50 | PXR50 | 50 mm | 6 | 1.80 mm | 100 | 600 |
| VXR60 | PXR60 | 60 mm | 4 | 2.30 mm | 100 | 400 |
| VXR75 | PXR75 | 75 mm | 3 | 2.30 mm | 100 | 300 |
| VXR100 | PXR100 | 100 mm | 3 | 2.70 mm | 100 | 300 |
