Vultec’s Bias Tyre Repair Patches repair punctures, reinforced areas, and section injuries across bias-ply tyres, from heavy-duty OTR machinery to passenger, truck, and tractor tyres. The OTR range uses a square-lattice cord design with die-cut edges that resist cord lifting, repairing injuries up to 300 mm on tyres rated up to 52-ply, with a flexible sidewall variant for bead-area repairs.
The Bias/Diagonal range offers full-ply, shock-absorbing construction, die-cut and octagonally moulded for strength and easy installation, suited for injuries from 3 mm to 125 mm on tube-type and tubeless tyres

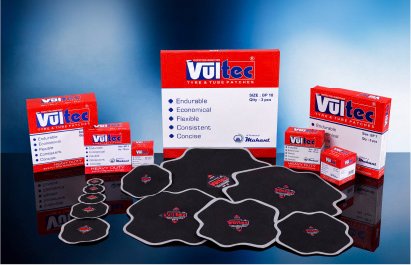

Versa Cure (Dual Cure) repair units, identified by Red Packaging, feature a base gum that cures either chemically or with heat. This soft, high-tack gum is less susceptible to issues caused by moisture, handling, and cement drying time.

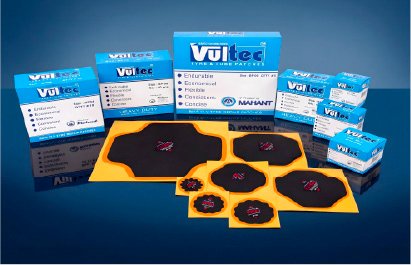

Chemical Cure repair units, identified by Blue Packaging, are moulded to a feather edge and use a chemical-curing base gum with superior green tack. An extended poly backing makes removal and installation quick and easy
Used for puncture, reinforced, and section repairs on passenger, light truck, truck, and tractor tyres, both tube-type and tubeless. Built with full-ply construction, featuring a shock-absorbing rubber-and-nylon layer, die-cut on imported Italian machines and moulded into an octagonal shape for strength and easy installation. Repairs injuries from 3 mm (1/8″) to 125 mm (5″).
| Bias Tyre Patches | |||||
|---|---|---|---|---|---|
| Product Code Versa Cure |
Versa Cure Bias Tyre Patches | Product Code Chemical Cure | Chemical Cure Bias Tyre Patches | Dimensions of Patches in mm | Qty Per Box |
| VTR001 | BP-0 | CTR201 | BP-00 | Dia 55 | 25 |
| VTR002 | BP-1 | CTR202 | BP-01 | Dia 75 | 20 |
| VTR003 | BP-2 | CTR203 | BP-02 | Dia 90 | 20 |
| VTR004 | BP-3 | CTR204 | BP-03 | 132 x 132 | 10 |
| VTR005 | BP-4 | CTR205 | BP-04 | 152 x 152 | 10 |
| VTR006 | BP-5 | CTR206 | BP-05 | 177 x 177 | 10 |
| VTR007 | BP-6 | CTR207 | BP-06 | 240 x 240 | 5 |
| VTR008 | BP-7 | CTR208 | BP-07 | 290 x 290 | 5 |
| VTR009 | BP-8 | CTR209 | BP-08 | 340 X 340 | 5 |
| VTR010 | BP-9 | CTR210 | BP-09 | 380 x 380 | 3 |
| VTR011 | BP-10 | CTR211 | BP-010 | 430 x 430 | 3 |

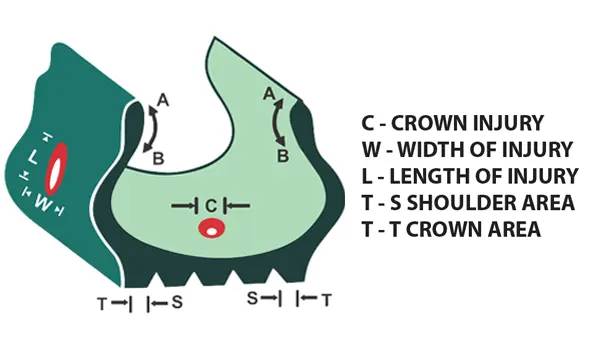

A-B NON REPAIRABLE AREA
| Tyre Size | From the Beed | |
|---|---|---|
| 7.00 - 8.5 | 3" | 75mm |
| 9.00 - 14.00 | 4" | 100mm |
| 16.00 - 18.00 | 5" | 125mm |
| 21.00 - 27.00 | 6" | 150mm |
| BIAS PLY TYRE - REPAIR CHART | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INJURY | Inch | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 | 1 1/2 | 2" | 2 1/2" | 3" | 4" | 4 1/2" | 5" |
| SIZE | mm | 3 | 6 | 10 | 13 | 20 | 25 | 40 | 50 | 65 | 75 | 100 | 115 | 125 |
| PLY RATING | 4 | BP-0 | BP-0 | BP-1 | BP-2 | BP-3 | BP-3 | BP-4 | BP-5 | |||||
| 6 | BP-0 | BP-0 | BP-1 | BP-2 | BP-3 | BP-3 | BP-4 | BP-5 | BP-6 | |||||
| 8 | BP-0 | BP-0 | BP-2 | BP-3 | BP-3 | BP-4 | BP-4 | BP-5 | BP-6 | |||||
| 10 | BP-0 | BP-1 | BP-2 | BP-3 | BP-3 | BP-4 | BP-5 | BP-6 | BP-6 | BP-7 | BP-8 | |||
| 12 | BP-0 | BP-1 | BP-2 | BP-4 | BP-4 | BP-4 | BP-5 | BP-6 | BP-6 | BP-7 | BP-8 | |||
| 14 | BP-0 | BP-1 | BP-3 | BP-4 | BP-4 | BP-5 | BP-6 | BP-6 | BP-7 | BP-7 | BP-8 | BP-9 | BP-10 | |
| 16 | BP-0 | BP-1 | BP-4 | BP-4 | BP-5 | BP-5 | BP-6 | BP-6 | BP-7 | BP-7 | BP-8 | BP-9 | BP-10 | |
| 18 | BP-0 | BP-1 | BP-4 | BP-5 | BP-5 | BP-6 | BP-6 | BP-7 | BP-8 | BP-8 | BP-9 | BP-10 | BP-10 | |
| 20 | BP-0 | BP-1 | BP-4 | BP-5 | BP-5 | BP-6 | BP-7 | BP-8 | BP-8 | BP-9 | BP-9 | BP-10 | BP-10 | |
| 22 | BP-0 | BP-1 | BP-4 | BP-6 | BP-6 | BP-7 | BP-8 | BP-8 | BP-8 | BP-9 | BP-10 | BP-10 | ||
| FOR PLY DAMAGES UPTO HALF OF THE CARCASS THICKNESS ON TREAD, SHOULDER, SIDEWALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| INJURY | Inch | 1/8" | 3/8" | 1/2" | 1" | 2" | 3" | 4" | 5" |
| SIZE | mm | 3 | 10 | 13 | 25 | 50 | 75 | 100 | 125 |
| PLY RATING | 8-12 | BP-0 | BP-1 | BP-2 | BP-3 | BP-4 | BP-6 | BP-7 | BP-8 |
| 14-18 | BP-0 | BP-1 | BP-2 | BP-4 | BP-5 | BP-6 | BP-7 | BP-8 | |
| 20-22 | BP-0 | BP-2 | BP-3 | BP-5 | BP-6 | BP-7 | BP-8 | BP-9 | |

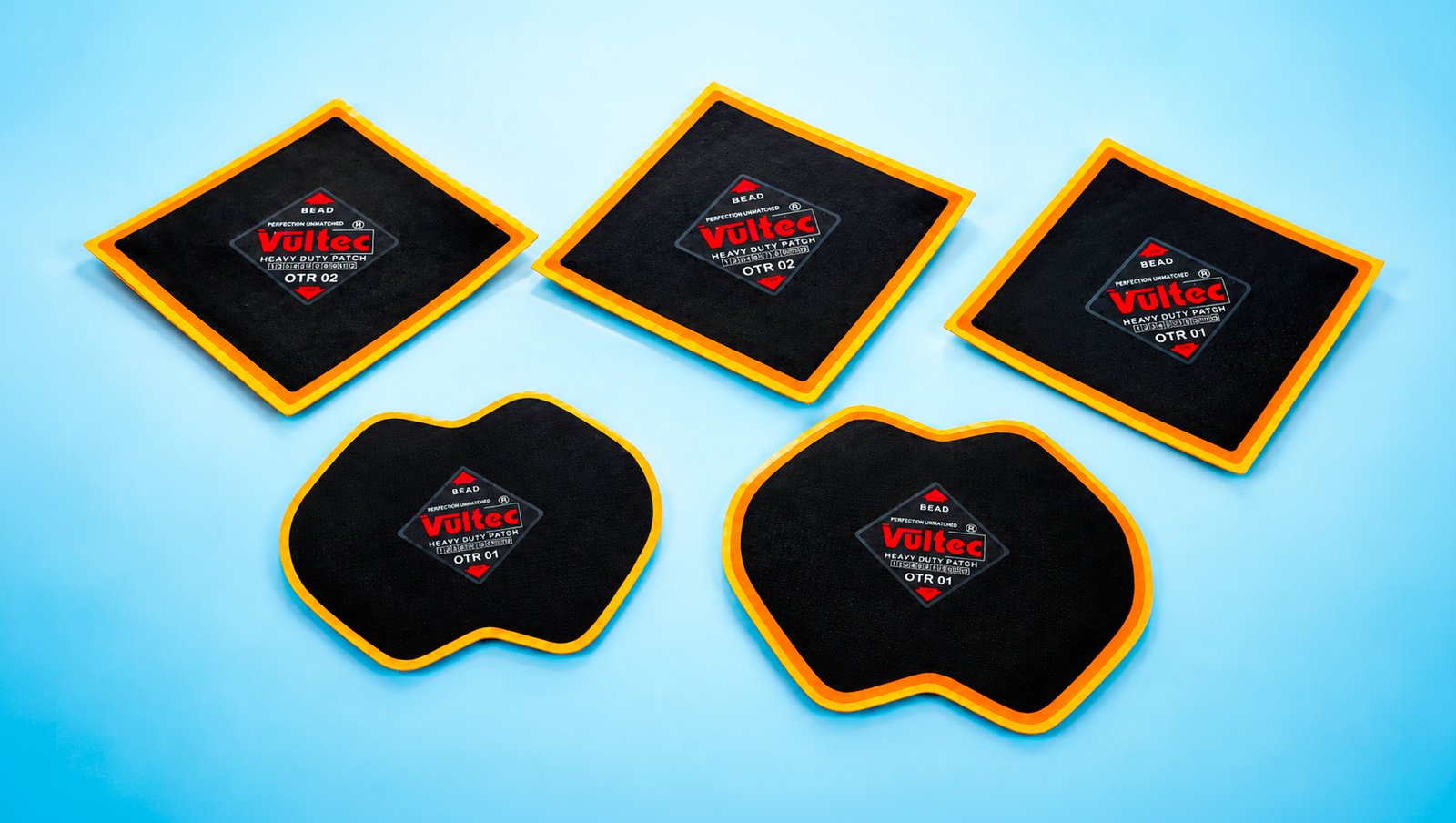

Used to repair punctures, reinforced areas, and section injuries in bias-ply OTR tyres for heavy-duty construction and earth-moving machines. Made from cord strips layered in a square-lattice design for a large repair platform in a smaller patch, with die-cut edges that disperse cord-end stress and prevent lifting. Repairs injuries up to 300 mm on tyres rated up to 52-ply.
| Earth Mover/ OTR Tyres Butterfly Tyre Patches | |||||
|---|---|---|---|---|---|
| Product Code Versa Cure |
Product Code Description | Product Code Chemical Cure | Product Code Description | Dimensions of Patches in mm | Qty Per Box |
| VTR061 | TOR- BF1 | CTR261 | TOR- BF01 | 288 | 5 |
| VTR062 | TOR- BF2 | CTR262 | TOR- BF02 | 308 | 5 |
| VTR063 | TOR- BF3 | CTR263 | TOR- BF03 | 348 | 5 |
| VTR064 | TOR- BF4 | CTR264 | TOR- BF04 | 430 | 3 |
| VTR065 | TOR- BF5 | CTR265 | TOR- BF05 | 520 | 3 |
| VTR066 | TOR-BF6 | CTR266 | TOR-BF06 | 560 | 3 |
| VTR067 | TOR- BF7 | CTR267 | TOR- BF07 | 560 | 1 |
| VTR068 | TOR- BF8 | CTR268 | TOR- BF08 | 595 | 1 |
| Earth Mover/OTR Tyres Square Patches | |||||
|---|---|---|---|---|---|
| Product Code Versa Cure |
Product Code Description | Product Code Chemical Cure | Product Code Description | Dimensions of Patches in mm | Qty Per Box |
| VTR069 | TOR- SQ1 | CTR269 | TOR- SQ 01 | 183 x 183 | 5 |
| VTR070 | TOR- SQ2 | CTR270 | TOR- SQ 02 | 205 x 205 | 5 |
| VTR071 | TOR- SQ3 | CTR271 | TOR- SQ 03 | 230 x 230 | 5 |
| VTR072 | TOR- SQ4 | CTR272 | TOR- SQ 04 | 280 x 280 | 3 |
| VTR073 | TOR- SQ5 | CTR273 | TOR- SQ 05 | 330 x 330 | 3 |
| VTR074 | TOR- SQ6 | CTR274 | TOR- SQ 06 | 380 x 380 | 3 |
| VTR075 | TOR- SQ7 | CTR275 | TOR- SQ 07 | 430 x 430 | 1 |
| VTR076 | TOR- SQ8 | CTR276 | TOR- SQ 08 | 480 x 480 | 1 |
A-B NON REPAIRABLE AREA
| Tyre Size | From the Beed | |
|---|---|---|
| 16.00 - 18.00 (20.5 - 23.5) | 5" | 110mm |
| 26.00 - 27.00 (26.5 - 33.5) | 6" | 150mm |
| 30.00 - 33.00 (37.25 - 37.5) | 7" | 175mm |
| 36.00 and above | 8" | 200mm |
| OTR (Off the Road) Bias Repair Chart | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| INJURY | Inch | 1" | 2" | 3" | 4" | 5" | 6" | 7" | 8" | 9" | 10" |
| SIZE | mm | (25mm) | (50mm) | (75mm) | (100mm) | (125mm) | (150mm) | (175mm) | (200mm) | (225mm) | (250mm) |
| PLY RATING | 6-12 | TOR- 1 | TOR- 1 | TOR- 2 | |||||||
| 14-16 | TOR- 1 | TOR- 2 | TOR- 3 | TOR- 3 | TOR- 3 | TOR- 4 | |||||
| 18-20 | TOR- 1 | TOR- 2 | TOR- 3 | TOR- 3 | TOR- 4 | TOR- 4 | TOR- 5 | ||||
| 22-24 | TOR- 1 | TOR- 2 | TOR- 3 | TOR- 4 | TOR- 4 | TOR- 5 | TOR- 6 | TOR- 6 | TOR- 7 | ||
| 26-28 | TOR- 1 | TOR- 2 | TOR- 4 | TOR- 4 | TOR- 5 | TOR- 6 | TOR- 6 | TOR- 6 | TOR- 7 | TOR- 7 | |
| 30-36 | TOR- 1 | TOR- 2 | TOR- 4 | TOR- 5 | TOR- 5 | TOR- 6 | TOR- 7 | TOR- 7 | TOR- 7 | TOR- 7 | |
| 38-44 | TOR- 1 | TOR- 2 | TOR- 5 | TOR- 5 | TOR- 6 | TOR- 7 | TOR- 7 | TOR- 8 | TOR- 8 | TOR- 7 | |
| 46-50 | TOR- 2 | TOR- 3 | TOR- 5 | TOR- 6 | TOR- 7 | TOR- 7 | TOR- 7 | TOR- 8 | TOR- 8 | TOR- 8 | |
| 52-58 | TOR- 2 | TOR- 3 | TOR- 5 | TOR- 6 | TOR- 7 | TOR- 7 | TOR- 8 | TOR- 8 | TOR- 8 | TOR- 8 | |
| 60-68 | TOR- 3 | TOR- 4 | TOR- 6 | TOR- 7 | TOR- 7 | TOR- 8 | TOR- 8 | TOR- 8 | TOR- 8 | TOR- 8 | |
